9 SL-P Strevell DOCILF

GPS: 42.01097,-113.205818

Select photo to see larger version.

Location / Airway

Location / Name

IDAHO: Cassia County

9 SL-P Strevell DOCILF, commonly called Strevell site no.9, Department of Commerce intermediate landing field on the Salt Lake-Pasco airway
AKA Department of Commerce intermediate field, site 10, Salt Lake-Pendleton Airway

GPS: 42.01097,-113.205818

Contract Air Mail

C.A.M. #5 Salt Lake City-Pasco
Salt Lake-Pasco airway
Salt Lake City-Burley section

Operator

Walter T. Varney, Varney Airlines
Contract awarded October 7, 1925
Elko-Pasco airway began April 6, 1926
Reorganized to Salt Lake-Pasco airway, which began October 1, 1926

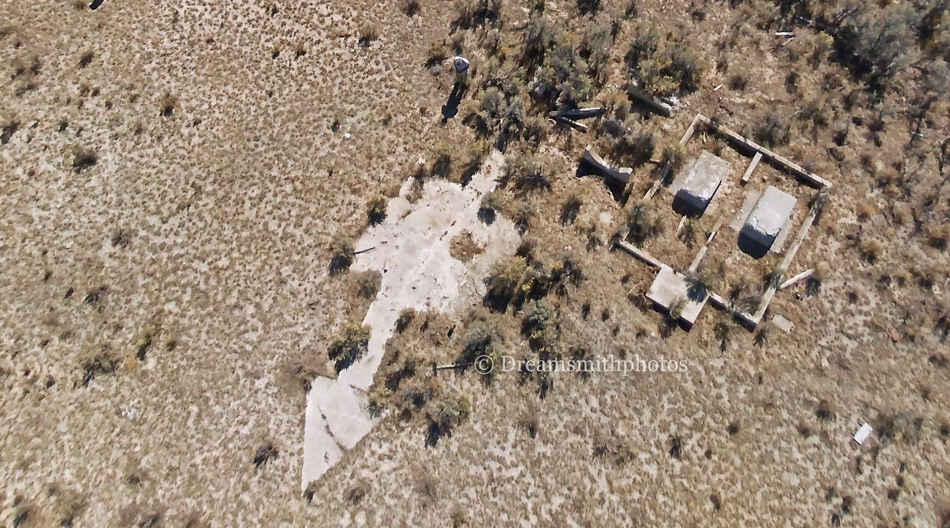

Drone Photos

Select photo to see larger version.

Panoramic

Observations and Notes

The Strevell Arrow is located in the middle of a large desert plain surrounded by mountains just off of Hwy 81 in southern Idaho, approximately one mile north of the Utah border. There is a dirt road that leads right up to the arrow, so no walking on our part.

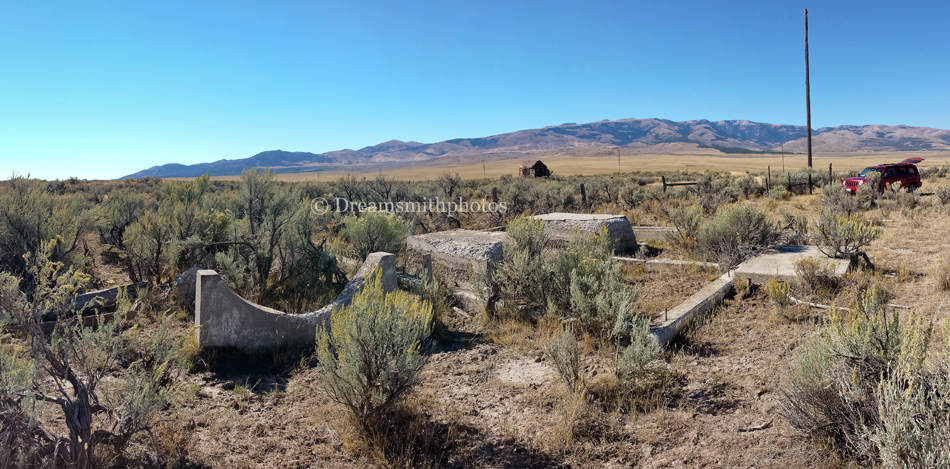

The arrow is complete and in fair condition. The base of the arrow where the generator shed stood is not at the beginning of the arrow, but placed separately just to the left of where it would normally be.

The arrow itself is 47 feet in length.

The pilot would approach the tail of the arrow on a compass heading of 340° (N-NW), and then exit the arrow on a compass heading of 324° (NW).

All measurements and compass headings are approximate.

Contributors Photos

Links

"The Ogden Standard-Examiner"
(Ogden, Utah), 27 Nov 1929, Page 3

Description	Date	Publication / Internet
Strevell, Idaho page 41.—Department of Commerce intermediate field, site 9, Salt Lake-Pasco Airway. One-quarter mile N. of city, in valley between two mountain ranges. Altitude. 5,400 feet. L shape, 120 acres, two landing strips, 3,283 feet by 921 feet N./S., and 2,638 by 915 feet B./W.; loam, slight slope to SW., natural drainage. Directional arrow marked "9 SL-P" Radio and beacon towers in SW. corner. Beacon, boundary, and approach lights. Beacon, 24 inch rotating, with green course lights flashing characteristic "9" (_ _ .). Aviation fuel, day and night. Department of Commerce radio station KME, operating frequency 240 kc.	September 1, 1931	Airway Bulletin No. 2 page 41
Strevell.—Department of Commerce Intermediate field, site 9, Salt Lake-Pasco Airway. One-quarter mile N. of city, in valley between two mountain ranges. Altitude, 5,400 feet. L shape, 120 acres, two lauding strips, 3,283 feet by 921 feet N./S., and 2,638 by 915 feet E./W.; loam, slight slope to SW., natural drainage. Directional arrow marked "9 SL-P." Radio and beacon towers in SW. corner. Beacon, boundary, and approach lights. Beacon, 24-Inch rotating, with green course lights flashing characteristic "9" (_ _ .). Aviation fuel, day and night. Department of Commerce radio station KME, operating frequency 278 kc. Department of Commerce marker beacon, identifying characteristic, "D" (_ . .), operating frequencies, 272 and 278 kc.	September 1, 1932	Airway Bulletin No. 2 page 45
Strevell.—Department of Commerce intermediate field, site 9, Salt Lake-Pasco Airway. One quarter mile N. of city, in valley between two mountain ranges. Altitude, 5,600 feet. L shape, two landing strips, 3,050 feet N./S., and 2,638 feet E./W.; entire area available, loam, slight slope to SW., natural drainage. Shed roof marked "9 SL-P." Radio and beacon towers in SW. corner. Beacon, boundary, and approach lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "9" (_ _ .). Emergency aviation gas. Department of Commerce marker beacon, nondirective, identifying characteristic, "D" (_ . .), operating frequencies, 272 and 278 kc.	June 1, 1933	Airway Bulletin No. 2 page 47
Strevell.—Department of Commerce intermediate field, site 9. Salt Lake-Pasco Airway. One-fourth mile N. of city, in valley between two mountain ranges Altitude. 5.600 feet. L-shape, two landing strips. 3,050 feet N./S. and 2,638 feet E./W.: entire area available, loam, slight slope to SW., natural drainage. Shed roof marked "9 SL-P." Radio and beacon towers in SW. corner. Beacon, boundary, and approach lights. Beacon. 24-Inch rotating, with green course lights flashing characteristic "9" (_ _ .). Emergency aviation gas. Department of Commerce marker beacon, nondirective. identifying characteristic, "D" (_ . .), operating frequencies, 272 and 278 kc.	September 1, 1934	Airway Bulletin No. 2 page 51
Strevell—Department of Commerce Intermediate field, site 10, Salt Lake-Pendleton Airway. One-fourth mile N. of city, in valley between two mountain ranges. Lat. 42°01'; long. 113° 12'. Alt. 5,270 feet. L-shape, two landing strips, 8,050 feet N./S., and 2,638 feet E./W.; entire area available, loam, slight slope to SW., natural drainage. Shed roof marked "10 SL-P". Radio and beacon towers in SW. corner. Beacon, boundary, and approach lights. Beacon. 24-inch rotating, with green course lights flashing characteristic "10" (_ _). Department of Commerce marker beacon, Call KME, Identifying characteristic "D" (_ . .), operating frequency 272 kc.	January 1, 1937	Airway Bulletin No. 2 page 56
Strevell.—Department of Commerce intermediate field, site 10, Salt Lake-Pendleton Airway, one-fourth mile N. of city, in valley between two mountain ranges. Lat. 42° 01'; long. 113° 12'. Alt. 5,270 feet. L-shape, two landing strips, 3,050 feet N./S., and 2,038 feet E./W.; entire area available, loam, slight slope to SW., natural drainage. Shed roof marked "10 SL-P." Radio and beacon towers in SW". corner. Beacon, boundary, and approach lights. Beacon, 24-inch rotating, with green course lights flashing characteristic '-10'' (_ _).Department of Commerce marker beacon, call KME, identifying characteristic "D" (_ . .), operating frequency 272 kc.	January 1, 1938	Airway Bulletin No. 2 page 58
