California
9 Arrows and 12 Beacons

This site provides historical information only, do not use for navigation purposes.
Arrows and Beacons may be on private property, DO NOT TRESPASS!
ALL photos are copyrighted and may not be used without written permission other than for personal use.

Arranged by CAM Route and Beacon #. This is a work in progress and will be constantly updated as new information is found.

Arrows have light yellow background.
Click on gps co-ordinates to see their location on Google Earth

Photo from Google Earth
Yellow outline highlights the arrow shape
Arrow and Beacon Photos

Site Location

C.A.M #4 Los Angeles-Salt Lake City

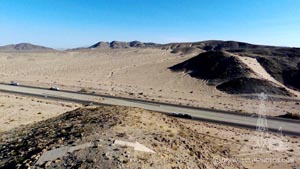

13 LA-SL Dunn

CALIFORNIA:  San Bernardino County

04_13 LA-SL Dunn Webpage

17



17 LA-SL Solomons Knob

CALIFORNIA:  San Bernardino County

04_17 LA-SL Solomons Knob Webpage

C.A.M #8 San Francisco-Seattle



Oakland Airport

CALIFORNIA: Alameda County

Oakland Airport Web Page



1A SF-SL Oakland East

CALIFORNIA: Alameda County

Oakland East #1A Web Page

Acalanes Ridge 1B



1B SF-SL Acalanes Ridge

CALIFORNIA: Contra Costa County


Acalanes Ridge #1B Web Page

diablo



SD Mt. Diablo

CALIFORNIA:  Contra Costa County

Mt. Diablo Web Page

12



12 SF-S Willows Airport

CALIFORNIA:  Glenn County

12 SF-S Willows DOCILF Web Page

15



15 SF-S Corning DOCILF

CALIFORNIA:  Tehama County

15 SF-S Corning DOCILF WebPage

20



20 SF-SL Redding Airport

CALIFORNIA:  Shasta County

gps: 40.577666, -122.405773

26



Weed Airport

CALIFORNIA:  County

Weed Airport Web Page



27 SF-S Gazelle

CALIFORNIA:  Siskiyou County

27 SF-S Gazelle web page

28



28 SF-S Montague Airport

CALIFORNIA:  Siskiyou County

28 SF-S Montague Airport Web Page

29



29 SF-S Black Mountain

CALIFORNIA:  Siskiyou County

National Geodetic Survey Data Sheet MX1086

gps: 41.857716, -122.511756

C.A.M #18 San Francisco-Salt Lake City

1

1

Marina Field / Montgomery Field

CALIFORNIA:  San Francisco Co.

Marina Field / Montgomery Field Web Page



Crissy Field and Air Mail Hangar

CALIFORNIA:  San Francisco Co.

Crissy Field and Air Mail Hangar Web Page



San Francisco Municipal /
Mills Field

CALIFORNIA:  San Francisco Co.

S. F. Municipal / Mills Field Web Page

10



10 SF-SL Auburn DOCILF

CALIFORNIA:  Placer County

10 SF-SL Auburn DOCILF Web Page

14a



14A SF-SL Cisco Grove

CALIFORNIA:  Placer County

gps: 39.308504, -120.562389



14B SF-SL Troy

CALIFORNIA:  Placer County

14B SF-SL Troy Web Page

15



15 SF-SL Donner

CALIFORNIA:  Nevada County

15 SF-SL Donner Web Page

16



16 SF-SL Truckee DOCILF

CALIFORNIA:  Nevada County

16 SF-SL Truckee DOCILF

C.A.M #33 Los Angeles-Atlanta

9



10 LA-P Whitewater

CALIFORNIA:  Riverside County

gps: 33.921168, -116.620747

17



17 Victory Pass

CALIFORNIA:  Riverside County

gps: 33.753614, -115.331761



Lincoln Regionla Airport  / Karl Harder Field

CALIFORNIA:  Placer County

Lincoln Regional Airport  /
Karl Harder Field website



Nut Tree Airport

Nut Tree Airport Website

4



C.A. 49_3 LA-A Mint Canyon

CALIFORNIA:  Los Angeles County

C.A. 49_3 LA-A Mint Canyon Website



1932 Airway Bulletin shows the following Intermediate fields with directional arrows.
If the intermediate fields had arrows, it is very likely that the beacons between fields also had arrows.
Happy Hunting.

Antelope Valley

Department of Commerce intermediate field, site 5B, Los Angeles-San Francisco Airway. Located in Antelope Valley 25 miles airline N. of Saugus, Calif. Altitude, 3,000 feet. Rectangular, 75 acres, 3,000 by 1,000 feet, sod, level, natural drainage. Directional arrow marked "5B LA-SF." Beacon boundary, and approach lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "5" (. — .). No servicing facilities.

Atwater

A 24-inch 2,000,000 candlepower beacon light, showing six rotations per minute, is in operation at the new intermediate landing field (LA-SF Site No. 26), located 2 miles south of Atwater. This beacon light was formerly located 5 miles west of Merced. An illuminated wind cone is mounted on the beacon tower, and two green course lights flash characteristic: Dash, dot, dash (_._). Boundary lights for night flying outline this field, which is 2,640 feet long by 1,320 feet wide, and green lights show best approaches. A watch house is located in the southwest corner of this site, on the roof of which the route and site number are painted. Twenty-four hour watch is maintained at this field and weather information is available. It is planned further to equip this facility with a concrete directional arrow and to install boundary cones on the light standards which outline the field.

Auburn

Department of Commerce intermediate field, site 10. San Francisco-Salt Lake Airway. Three and one-half miles NW. of city. Altitude, 1,400 feet. Rectangular, 27% acres, 2,417 by 700 feet, loam, slight slope to center, natural drainage; entire field available. Directional arrow marked "10 SF-SL." Pole line to N, beacon tower to E. Beacon, boundary, approach, and obstruction lights. Beacon, clear, flashing characteristic "10" (__ ). No servicing facilities. Teletype.

Bagdad

Department of Commerce intermediate field, site 16, Los Angeles-Amarillo Airway. One mile S. Altitude, 700 feet. L shape, 155 acres, "sod and dirt, level, natural drainage; three landing strips, N./S. and E./W., 3,960 by 660 feet, NW./SB., 4,000 feet. Directional arrow marked "16 LA-A." No obstructions. Beacon, boundary, and approach lights. Beacon, 36-inch rotating, showing alternate clear and green flashes. No servicing facilities.

Baker

Department of Commerce intermediate field, Site 16, Los Angeles-Salt Lake Airway. One mile N. of city and 6 miles N. of Soda Lake. Altitude, 1,000 feet. Square, 159 acres, 2,625 by 2,625 feet, sand, level, natural drainage. Directional arrow marked "16 LA-SL." Beacon tower on S. Beacon, boundary and approach lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "6" (_._). No servicing facilities.

Baldy Mesa

Department of Commerce intermediate field, site 6, Los Angeles-Amarillo Airway. Three and one-half miles W. of Hesperia, and 7 miles S. of Victorville, on U. S. Highway 66. Altitude, 3,550 feet. Triangular, 122 acres, 2,600 feet N./S., 2,640 feet E./W.; diagonal runway SW./NE., 3,700 feet, entire field available, sandy loam, slight slope to N., natural drainage. Directional arrow marked "6 LA-A." Beacon tower to SB. Beacon, boundary, approach and obstruction lights. Beacon 24-inch rotating, with green course lights flashing characteristic "6" ( . ). Teletype. Aviation gas and oil available. No other servicing facilities. Department of commerce marker beacon, characteristic signal "U" (. . ) operating frequencies 332 and 278 kc.

Blue Canyon

Department of Commerce intermediate field, site 13, San Francisco-Salt Lake Airway. One and three-fourths miles N. of city; four and half miles SW. of Clyde Peak. Altitudes, 5,300 feet T shape, 37 acres, dirt surface, level natural drainage; two landing strips, 3,390 feet and 2,300 feet. Directional arrow marked "13 SF-SL." Pole lines to B. and N1. Beacon, boundary, approach and obstruction lights. Beacon, 24 Inch, rotating with green course lights flashing characteristic "3" (..._). No servicing facilities. Teletype.

Capay

Department of Commerce intermediate field, site 7, San Francisco-Seattle Airway. One mile N. Altitude, 500 feet. Triangular, 69 acres, 2,600 by 2,100 by 2,100 feet, gravel loam, slight slope to B., natural drainage. Directional arrow marked "7 SF-S." Trees to S flagpole and tower to SE. drainage ditch to N. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "7" (..). No servicing facilities.

Chowchilla

Department of Commerce intermediate field, site 24, Los Angeles-San Francisco Airway. Two and one-half miles SW. Altitude, 150 feet. Rectangular, 80 acres, 2,640 by 1,320 feet, sod, level, natural drainage. Directional arrow marked "24 LA-SF." Power line to N. and W., beacon tower in NE corner. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "4" (....)• No servicing facilities.

Concord

Department of Commerce intermediate field, site 2A. San Francisco-Salt Lake City Airway. Three miles E. of city, eight miles NW. of Mount Diablo. Altitude, 100 feet. Triangular, 81 acres, black loam, level, natural drainage. Directional arrow marked "2A SF-SL." Pole line to NE., trees and beacon tower to NW. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "2" (. . ). Hangars, aviation fuel, day and night. Teletype.

Daggett

Department of Commerce intermediate field, site 10B, Los Angeles-Amarillo Airway. Six miles E. of Daggett, Calif. Altitude, 2,006 feet L-shape. 145 acres, E/W. 3,870 feet by N./S., 3,250 feet. Diagonal landing strip SW./NE. 4,200 feet, sand and gravel, natural drainage. Directional arrow marked "10B, LA-A." Beacon tower and watch houses located along NW. diagonal boundary. Beacon, boundary, approach, and obstruction lights. Beacon, 24- inch rotating, with green course lights flashing characteristic "10" (_— )•Radio range beacon, identifying signal "K" (_._), operating frequency 248 kc. Marker beacon, characteristic signal "I" (. .), frequency 248 kc, under construction. Teletypewriter. No servicing facilities.

Delta

Delta, California page 13.—Department of Commerce intermediate field, site 22, San Francisco-Seattle Airway. One-fourth mile SW. Altitude, 1,400 feet. Irregular shape, 2,150 by 330 feet N./S., level, natural drainage. Directional arrow marked “22 SF-S." Pole line to N. and S., beacon tower to SW. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "2" (. . _). No servicing facilities.

Fairfield-Suison

Fairfield-Suison, California page 14.—Department of Commerce intermediate field, site 4, San Francisco-Seattle Airway. Two miles E. on Bio Vista Highway. Altitude, 12 feet. Rectangular, 80 acres, 2,640 by 1,820 feet, black loam, level, natural drainage. Directional arrow marked "4 SF-S." Pole line to S., beacon tower to S/W. Beacon, boundary, approach, and obstruction lights. Beacon, 24-Inch rotating, with green course lights flashing characteristic "4" (....) No servicing facilities.

Fontana

Department of Commerce Intermediate field, site 4, Los Angeles-Amarillo Airway. One and one-half miles N. of city. Altitude, 1,600 feet. Triangular, 91 acres, 2,640 feet N./S., 2,227 feet E./W.; loam, sand, and gravel, natural drainage. Directional arrow marked "4 LA-A." Beacon tower and short pole line on E. Beacon, boundary, and approach lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "3" (. . . —). Radio range beacon, operating frequency 332 kcs. (._.). No servicing facilities. Teletype.

Goffs

Department of Commerce Intermediate field, site 21, Los Angeles-Amarillo Airway. Two and one-half miles E. Altitude, 2,500 feet. L shape, ]55 acres, sod and dirt, level, natural drainage; three landing strips, N./S., and E./W., 8,960 by 660 feet; NW./SE., 4,000 feet Directional arrow marked "21, LA-A." Pole line 1,000 feet S. Beacon, boundary, and approach lights. Beacon, 86-inch rotating, showing alternate green and clear flashes. No servicing facilities.

Hesperia

(LA- SL Site No. 7) A 24-inch 2,000,000-candlepower beacon, showing six rotations per minute, elevation of main beam above horizon 1 ½°, is in operation approximately 3 miles west of Hesperia. This beacon is mounted on a 51-foot tower located on the southeast side of the field about 450 feet northeast of the south boundary line. Two green course lights flash characteristic seven: Dash, dot, dot ( . .). An illuminated wind cone is mounted on the beacon tower, and a concrete directional arrow is located at the base. White boundary lights for night-flying operations outline the field, with green approach lights indicating runways and red lights marking the obstruction. Metal cones painted yellow are mounted on boundary light standards. Wood day boundary markers are also installed adjacent to boundary cones at the reentrant angles of the field and at intervals between to mark out the perimeter of the field. A 90-foot circle marker has been established in the center of the field.

Hornbrook

This intermediate landing field (SF-S Site No. 29-B), is now lighted. An electric code beacon is mounted on a 51-foot tower which is located in the northeast corner of the field ; concrete directional arrow at base of tower. Metal cones painted yellow and mounted on fill boundary light standards outline the field. Boundary lights for night flying outline the field, with green lights showing the approaches. A Department of Commerce standard acetylene route beacon, mounted on a 51-foot tower, is in operation approximately 5 ½ miles north of this field.

Kelly

(Cima) Department of Commerce intermediate field, site 18, Los Angeles-Salt Lake airway. Twenty-four miles N., of city, and 6 miles N., of Valley Wells, in a valley between Clark, Shadow, and Kingston Mountains. Altitude, 3,200 feet. Triangular, 78 acres, 2,350 by 1,925 feet, gravel and silt, level, natural drainage; entire field available. Directional arrow mark "18 LA-SL." Beacon tower in SE. corner. Beacon and boundary lights. Beacon, 24-inch rotating, with green coarse lights flashing characteristic "8" (—. . .) No servicing facilities.

Livermore

Department of Commerce intermediate field, site 33, Los Angeles-San Francisco Airway. One-half mile NW. Altitude, 473 feet. Irregular shape, 77 acres, 2,169 by 2,018 feet, sod, level, natural drainage. Directional arrow marked "33 LA-SF." Pole lines to N. and W., trees to E., windmill and beacon tower In SE. corner. Beacon, boundary, approach and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "3" (...—). No servicing facilities. Teletype.

Mount Shasta

Department of Commerce intermediate field, site 26A, San Francisco-Seattle Airway. Six miles N. Altitude. 3,600 feet. Irregular shape, 70 acres. 1,775 by 200 feet N./S., 1.710 by 180 feet NW./SE., sod, level, natural drainage. Directional arrow marked "26 A SF-S." Low mounds to SE., beacon tower and pole line to NE. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "6 "(—.—). No servicing facilities.

Oceanside

Department of Commerce Intermediate field, site 3, San Diego-Los Angeles Airway. Three miles N., between Highway 101 and Pacific Ocean. Altitude, 20 feet. Irregular, 100 acres, sod, level, natural, drainage; two landing strips, 2,800 feet N./S. and 2,500 feet E./W.; entire field also available. Directional arrow marked "3 SD-LA." Pole line along highway, Beacon, boundary, approach, and obstruction lights. Beacon, 24-Inch, rotating, with green course lights flashing characteristic "3 "(..._). No servicing facilities. Teletype.

Patrero

Patrero, California page 19.—Department of Commerce Intermediate field, site 3B, San Diego-El Paso Airway. Adjoins city on E., thirty miles E. of San Diego. Altitude, 2,323 feet. Rectangular, 35 acres, 3,100 by 600 feet, sod, level, natural drainage. Directional arrow marked "3B, SD-ELP" Pole line to S. Beacon, boundary, and approach lights. Beacon, green, flashing characteristic "3" (..._). No servicing facilities.

Saugus

Department of Commerce intermediate field, site 3A Los Angeles-San Francisco Airway. One mile S. Altitude, 150 feet. Rectangular, 34 acres. 2,470 by 600 feet, sod, level, natural drainage. Directional arrow marked "3A LA-SF." Pole line to E. leading to beacon tower, power lines from 1/2 to 3/4  mile to E. and W. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "3"(..._). No servicing facilities. Teletype.

Tejon

Department of Commerce intermediate field, site 7, Los Angeles- San Francisco Airway. Twenty-seven miles S. of Bakersfield, 11% miles SW. of Tejon. Altitude, 900 feet. Square, 160 acres, 2,640 by 2,640 feet, sandy gravel, slight slope to S., natural drainage. Directional arrow marked "7 LA-SF." Pole lines to N. and E. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "7" ( . .). No servicing facilities. Teletype.

Siskiyou

(Site No. 30).—A 2.000.000 candlepower, 24-lnch beacon, showing six rotations per minute, is in operation approximately 2 ½ miles southeast of Deter, Oreg. Elevation of main beam above horizon 1 ½ °. A concrete directional arrow has been placed at the base of the tower, on which this light is mounted. Forward bearings N. 6° W. magnetic; backward bearings S. 42° E. magnetic.

Truckee

Truckee, California page 23.—Department of Commerce intermediate field, site 16B, San Francisco-Salt Lake Airway. Four miles NE. Altitude, 5,600 feet. L shape, 113 acres, decomposed rock, level, natural drainage. Two landing strips, 2,575 feet and 2,858 feet. Directional arrow marked "16B SF-SL." Pole line to SE.  Beacon, boundary, approach, and obstruction lights. Beacon 24-inch rotating,  with green course lights flashing characteristic "6" ( . ). No servicing facilities. Teletype.

Valley Wells

(LA-SL Site No. 20) A 24-inch 2,000,000-candlepower beacon, showing six rotations per minute, elevation of main beam above horizon 1%°, is in operation Approximately 7 miles north of Valley Wells. This beacon is mounted on a 51-foot tower located on the east side of the field about 450 feet north of the south boundary line. Two green course lights flash characteristic ten: Dash, dash (_ _). An illuminated wind cone is mounted on the beacon tower, with concrete directional arrow at the base of the tower. White boundary lights for night-flying operations outline the field while green approach lights indicate runways. Metal cones painted turquoise blue are mounted on boundary light standards. Wood day boundary markers are also installed adjacent to boundary cones at the reentrant angles of the field and at intervals between to mark out the perimeter of the field. A 90-foot circle marker has been established in the center of the field. A caretaker is at the field at all times.

Westley

Department of Commerce intermediate field, site 30, Los Angeles-San Francisco Airway. Two and one-half miles SW. Altitude, 85 feet. Rectangular, 80 acres, 2,640 by 1,320 feet, sod, level, natural drainage. Directional arrow marked "30 LA-SF." Pole line to N. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "10" ( ). No servicing facilities.

Williams

Department of Commerce intermediate field, site 9, San Francisco-Seattle Airway. Three and one-half miles S. Altitude, 130 feet. Rectangular, 80 acres, 2,640 by 1,320 feet, sod, level, natural drainage; entire field available. Directional arrow marked "9 SF-S." Pole line to N., beacon tower to NE. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "9" ( .) Small supply of aviation fuel, day and night. Teletype. .

Willows

Department of Commerce intermediate field, site 12, San Francisco- Seattle Airway. One and one-half miles W. Altitude. 140 feet. Irregular shape, 85 acres, 2,781 by 2,500 feet, sod, level, natural drainage. Directional arrow marked "12 SF-S." Pole line to N. Beacon, boundary, approach, and obstruction lights. Beacon, 24-inch rotating, with green course lights flashing characteristic "2" (.._). No servicing facilities.

Winter

Department of Commerce intermediate field, site No. 6B, San Francisco-Seattle Airway. Three and one-half miles NE. Altitude, 150 feet L shape, 85 acres. Sod, level, natural drainage; three landing strips. 3,380 feet N./S., 2,610 feet E./VV., and 2,800 feet NE./SW. Pole line to NW. Directional arrow marked "6B, SF-S." Beacon, boundary, and approach lights. Beacon, 24-inch rotating, green. (This field under construction.)
