4 LA-SL Enterprise / Sloan

GPS:  35.953291, -115.179291

Click on thumbnail for larger view.







Location / Airway

Location / Name

NEVADA:  Clark County

Department of Commerce Site No. 22, on the Los Angeles-Salt Lake airway.  AKA 22 LA-SL Enterprise / Slone

GPS:  35.953291, -115.179291

Contract Air Mail

CAM #4 Los Angeles-Salt Lake
Los Angeles-Las Vegas section
Route established April 17, 1926

Operator

Western Air Express awarded CAM #4 on November 1925



Contributors Photos

Photos Courtesy of Jeremiah Johnson July 5, 2016

Click on thumbnail for larger view.

Observations and Notes

Jeremiah Johnson writes:

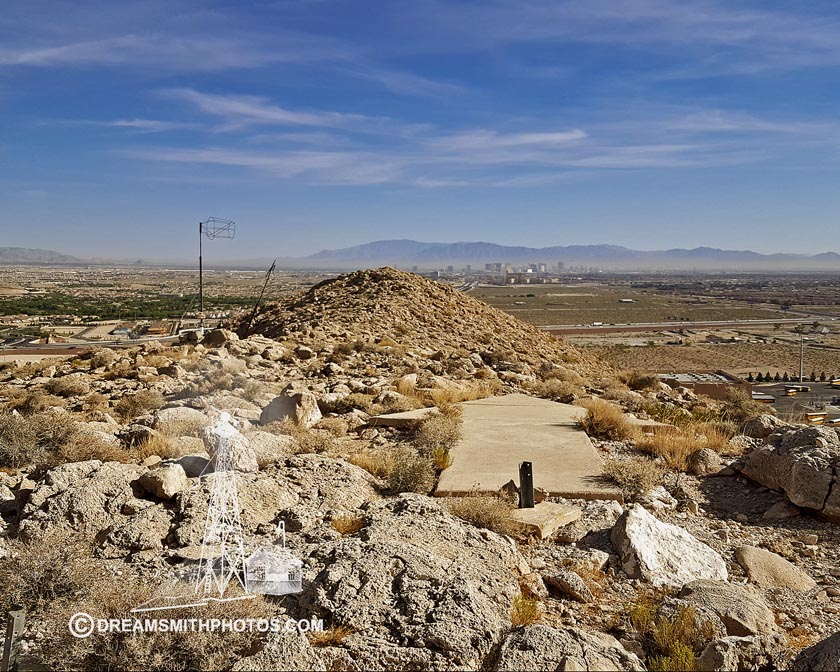

In general, the site is on a small hill at the southernmost point of I-15 in Las Vegas at the St. Rose Parkway exit. To the west is the freeway and a new housing development, to the north is a school bus station (with the southern tip of the strip), to the east is the M Resort and Casino and the south is the empty beginning of the long drive to LA (technically the township of Jean, primarily home to a gypsum mining operation and new Speed Vegas attraction).

After a quick scramble up the hill, you will find the arrow on the back southern half of the hill. Just to the north of the arrow on the hill, is a windsock frame that appears to date back to the cement arrow’s time frame (I checked the nuts and the washers and they appear to be the same as the components still remaining on the four “posts” of the beacon tower that used to be there). In addition, there is some other type of “rod” nearby that is much newer (has plastic pieces).

Overall, the cement arrow looks to be in great condition and there are still splatters of yellow paint all over the place (including large swathes on nearby rocks; can only imagine that workers accidentally spilled some!). In the picture of one of the beacon tower’s post, you will see there is considerable paint still visible, appears to be original wood forms around the concrete and some of them still have nuts and washers in place.

The base of the arrow structure is off center to the actual arrow section. This relates to a change of direction for pilots. If you follow the direction of the base and the turn in the arrow, it looks like it is guiding pilots coming from LA to make an adjustment towards Las Vegas, which directed them to the Las Vegas Municipal Field aka as Anderson Field (Rockwell Field).

Links

Air Commerce Bulletin Vol. 3 No. 12, dated December 15, 1931
http://hdl.handle.net/2027/uc1.b3221822?urlappend=%3Bseq=231

Another view of this arrow is on Panoramio | Google Maps Image.

 Clipped from Albuquerque Journal, 14 Jul 1925, TueMain Edition

 Clipped from Oakland Tribune, 16 Jul 1925, ThuPage 1

 Clipped from The Independent Record, 9 Oct 1925, FriPage 5

 Clipped from The San Bernardino County Sun, 24 Mar 1926, WedPage 10



Make a comment on our Facebook Page "Arrows Across America" about this arrow.

This site provides historical information only, do not use for navigation purposes.
Arrows and Beacons may be on private property, DO NOT TRESSPASS!
ALL photos are copyrighted and may not be used without written permission other than for personal use.
