Contract Air Mail Routes

Do not use for navigation these pages are for historical research only.

Link to Route

Description

Transcontinental 1918: New York-San Fransisco; interim stops Cleveland OH, Iowa City IA; Cedar Rapids IA; Des Moines IA; Omaha NE; Lincoln NE; North Platte NE; Cheyenne WY; Rock Springs WY; Salt Lake City UT; Elko NV; Reno NV; Sacramento, CA; Post Office Pilots; Airmail Costs 1918-1925; Air Mail Service, Air Mail Saga  Photos

CAM #1 Web Page

July 1, 1926: New York NY-Boston MA; interim stop in Hartford; awarded: Colonial Air TransportApril 30, 1930 Time Table CAM #1 Covers

CAM #2 Web Page

April 15, 1926: Chicago IL-St. Louis MO; interim stops: Peoria, IL; Springfield, IL; awarded: Robertson Aircraft Corporation  Robertson Aircraft Corporation on Wikipedia  RAC Time table CAM #2 Covers
CAM #3 Web Page May 12, 1926: Chicago IL-Dallas TX; interim stops: Moline IL; Saint Joseph MO; Kansas City MO ; Wichita KS, Oklahoma City OK; Fort Worth TX; awarded; National Air Transport Inc. CAM #3 Covers
CAM #4 Web Page April 17, 1926: Los Angeles CA-Salt Lake City UT; interim stop: Las Vegas NV; awarded: Western Air Express, Inc.  Douglas M-2  CAM #4 Covers
CAM #5 Web Page April 6, 1926: Elko NV and Pasco WA; interim stop: Boise ID; awarded: Varney Air Lines  CAM #5 Covers
CAM #6 Web Page February 15, 1926: Detroit/Dearborn MI-Cleveland OH; awarded: Ford Transport Lines (Ford Motor Company)  CAM #6 Covers
CAM #7 Web Page February 15, 1926: Detroit/Dearborn MI-Chicago IL; awarded: Ford Transport Lines (Ford Motor Company)  CAM #7 Covers
CAM #8 Web Page

September 15, 1926: Seatle WA-San Diego CA;  interim stops: Portland OR; Medford OR; San Francisco CA; Fresno CA; Bakersfield CA; with a train connection from Sacramento CA; awarded: Pacific Air Transport; July 1, 1927 Time TablePAT on Wikipedia  CAM #8 Covers

CAM #9 Web Page June 7, 1926: Chicago IL-Minneapolis MN; interim stops: Milwaukee WI; LaCrosse WI; awarded: Charles Dickinson; October 1, 1926: Northwest Airways CAM #9 Covers
CAM #10 Web Page April 1, 1926: Miami FL-Jacksonville FL; interim stops: Fort Myers FL; Tampa FL; awarded: Florida Airways  Candler Field  CAM #10 Covers
CAM #11 Web Page April 21, 1927: Cleveland OH-Pittsburgh PA; interim stops: Youngstown OH; Pittsburgh PA; McKeesport PA; awarded: Skyline Transportation Company; CAM #11 Covers
CAM #12 Web Page May 31, 1926 between Cheyenne WY-Pueblo CO; interim stops: Denver CO; Colorado Springs CO; awarded: Colorado Airways; CAM #12 Covers
CAM #13 Web Page July 1, 1926-November 1926: Philadelphia PA-Washington DC; interem stop: Norfork VA; awarded: Philadelphia Rapid Transit Air Service; CAM #13 Covers
CAM #14 Web Page Contract made the 31st day of July 1926.; Route: Detroit, Michigan to Grand Rapids, Michigan and return.; awarded Stout Air Services (Inc.);
CAM #15 Web Page July 1, 1926-November 1926: Philadelphia PA Navy Yard-Hoover Field Washington DC; awarded: Philadelphia Rapid Transit Air Service; CAM #15 Covers
CAM #16 Web Page Cleveland OH-Louisville KY; awarded: Continental Airlines Inc, Div Universal Aviation Corporation; CAM #16 Covers
CAM #17 Web Page September 1, 1927: New York NY-Chicago IL, interim stop Cleveland OH; awarded: National Air Transport; CAM #17 Covers
CAM #18 Web Page July 1, 1926: Chicago IL-San Francisco CA; interim stops: Iowa City IA; Cedar Rapids IA; Des Moines IA; Omaha NE; Lincoln NE; North Platte NE; Cheyenne WY; Rock Springs WY; Salt Lake City UT; Elko NV; Reno NV; Sacramento, CA; awarded:  Boeing Air Transport  Boeing Model 40  Time table Images; CAM #18 Covers
CAM #19 Web Page May 1, 1928: New York NY-Atlanta GA; awarded Pitcairn Aviation  Pitcairn Mailwing; CAM #19 Covers
CAM #20 Web Page May 1927:Albany NY-Cleveland OH; awarded: Colonial Western Airways Fairchild FC-2  Commemorative Medal; CAM #20 Covers
CAM #21 Web Page November 12, 1927: Dallas TX-Galveston TX; awarded Texas Air Transport  PA-5; CAM #21 Covers
CAM #22 Web Page Dallas TX-Brownsville TX: awarded Texas Air Transport; CAM #22 Covers
CAM #23 Web Page August 20, 1927: Atlanta GA-New Orleans; awarded Gulf Coast Airways; CAM #23 Covers
CAM #24 Web Page December 17, 1927: Chicago IL- Cincinnati OH; interim stop: Indianapolis awarded Embry Riddle Co.; CAM #24 Covers
CAM #25 Web Page May 1, 1928: Atlanta GA-Miami FL; interim stop: St. Petersburg FL; awarded Pitcirn Aviation; CAM #25 Covers
CAM #26 Web Page Great Falls-Salt Lake City UT; awarded National Parks Airways; CAM #26 Covers
CAM #27 Web Page Bay City-Chicago IL; awarded Thompson Aeronautical Corp; CAM #27 Covers
CAM #28 Web Page St. Louis MO-Omaha NB; CAM #28 Covers
CAM #29 Web Page New Orleans LA-Houston TX; awarded: Southern Air Transport; CAM #29 Covers
CAM #30 Web Page Chicago-Atlanta GA; awarded Interstate Air Lines; CAM #30 Covers
CAM #31 Web Page New York and points east to and between Cicero Field (Midway) and Grant Park (waterfront) airports in Chicago IL.: awarded Curtiss Flying Service dicontinued after 90 days; CAM #31 Covers
CAM #32 Web Page Pasco WA-Seattle WA; Varney Air Lines; CAM #32 Covers
CAM #33 Web Page April 2, 1929: Atlanta GA-Los Angeles CA; interim stops: ; awarded Southern Air Fast Express; CAM #33 Covers
CAM #34 Web Page Oct 25, 1930 New York NY- Los Angeles CA; awarded: Transcontinental & Western; Time Table images; CAM #34 Covers

Links

U.S. Air Service, Vol. 5, No. 2, March 1921, page 13-16;  Air Mail Pilots Cross Country in 33 Hours 20 Minutes Flat

U.S. Air Service, Vol. 6, No. 1, August 1921, page 31:  Remodeled DH's for Air Mail

U.S. Air Service, Vol. 7, No. 1, November 1922, page 24:  Night Flying From Coast to Coast in 28 Hours By Colonel Paul Henderson

U.S. Air Service, Vol. 8, No. 5, May 1923, page 13:  Post Office Department Asks Bids for Air Mail, New Orleans LA-Pilottown LA

U.S. Air Service, Vol. 8, No.5, May 1923, page 32: Air Mail Service Schedule, New York to San Francisco

U.S. Air Service, Vol. 8, No.5, May 1923, page 56: Air Mail Developing Aces (transcontinental route)

U.S. Air Service, Vol. 8, No. 9, September 1923, page 9-17:  Night Air Mail Service From oast to Coast (has photos)

U.S. Air Service, Vol. 8, No. 9, September 1923, page 5:  (advertisment) Photo of U.S. Air Mail Field, Cheyenne WY.

U.S. Air Service, Vol. 8, No. 9, September 1923, page 30-32:  Night Flying Progress by M.L. Patterson

U.S. Air Service, Vol. 9, No. 12, December 1924, page 25-28:  Chicago-New York Night Air Mail Planned

Overnight Air Mail Service between New York and Chicago, to start early next spring, was announced, recently, by Carl F. Egge, General Superintendent of the Post Office Departmen's Air Mail Division, who has just completed his report to Col. Paul Henderson, Second Assistant Postmaster General, embracing plans for illuminating the 780-mile route and working out emergency landing fields.

U.S. Air Service, Vol. 10, No. 2, February 1925, page 4:  (advertisement)  U.S. Air Mail Plane at Emergency Landin Field

U.S. Air Service, Vol. 10, No. 4, April 1925, page 13-16:  Birds of the Night (page 15, shows "Views along the Route of Our Great Air Mail")

U.S. Air Service, Vol. 10, No. 4, April 1925, page 20:  The Curtiss "Carrier Pigen" to Operate Between New York and Chicago

U.S. Air Service, Vol. 10, No. 4, April 1925, page 48:  Overnight Airmail New York and Chicago announced by Postmater General New on March 5

U.S. Air Service, Vol. 10, No. 5, May 1925, page 48: New Air Mail Contracts

U.S. Air Service, Vol. 10, No. 6, June 1925, page 7:  (advertisement)  Only A Night's Flight

U.S. Air Service, Vol. 9, No.2, February 1925, page 34-38: The Gay White Way of the Air Mail

An Interview With Colonel Paul Henderson, in Charge of Air Mail by C. Moran. (has some great photos)

U.S. Air Service, Vol. 10, No. 6, June 1925, page 20:  New Air Mail Line to Start July 1

U.S. Air Service, Vol. 9, No.6, July 1924, page 7-15: The First Night Airways, Lieut. D. L. Bruner and Liewt. H.R. Harris A.S.

U.S. Air Service, Vol. 10, No. 7, July 1925, page 10-16:  Make Way for the New York-Chicago Night Air Mail

Never Before Has Night Flying Been Attempted as a Scheduled Undertaking Over Mountainous Regions

U.S. Air Service, Vol. X, No.7, July 1925, page 59:  (Advertisment)  GE Searchlights Guide the Night Air Mail (nice beacon photo)

U.S. Air Service, Vol. X, No.9, September 1925, page 31:  Photo of a B.B.T. dioptric 500 million Candle Power Flood Light

U.S. Air Service, Vol. X, No. 11, November 1925, page35:  Five Air Mail Routes Awarded to Private Corporations

Boston to New York Via Hartford:  The successful bidder is Colonial Air Lines, Inc., Naugatuck, Conn.
Chicago to St. Louis via Springfield: The successful bidder is Robertson Aircraft Corporation, St. Louis, Mo.
Chicago to Dallas and Ft. Worth:  The successful bidder is National Air Transport, Inc., of Chicago, Ill.
Chicago to Birmingham:  No award.
Chicago to Saint Paul and Minneapolis:  No award.
Salt Lake City to Los Angeles:  The successful bidder is Western Air Express, Inc., of Los Angeles.
Elko to Pasco:  The successful bidder is Walter T. Varney of San Francisco, Calif.
Seattle, Washington, to Los Angeles:  The bid of Vern C. Corst (Gorst) is now under consideration.

U.S. Air Service, Vol. 12, No. 8, December 1925, page 39-45:  Tales of the Air Mail Pilots, by Burt M. McConnell
Stories along the transcontinental airway. Pilots mentioned are: Claire K. Vance (photo), Slim Lewis, Wesley Smith, Robert H. Ellis (photo), Boonstra, Chandler, Huking, Blanchfield, Lester F. Bishop (photo),

 Clipped from The Indianapolis News, 29 Jan 1926, FriPage 8

 Clipped from The Sedalia Democrat, 16 Jan 1927, SunPage 18

 Clipped from El Paso Herald, 25 Jun 1927, SatPage 2



 Clipped from The Brooklyn Daily Eagle, 28 Jun 1927, TuePage 22

Annual report of the Secretary of Commerce November 7, 1927, page 29

Program of Lighting:

Routes lighted by June 30, 1927

Transcontinental airway
New York-Boston
St. Louis-Chicago
Dallas-Chicago
Salt Lake-Pasco
Los Angeles-Salt Lake (partial)
Pueblo-Cheyenne (under contract)
Dallas-Chicago (under contract)

Routes to be lighted by June 30, 1928:

New York-Atlanta
Los Angeles-Seattle (partial)
Chicago-Twin Cities (partial)
Salt Lake-Pasco (partial)
San Francisco-Salt Lake
Los Angeles-Salt Lake (to complete)
Louisville-Cleveland

Routes to be considered for fiscal year 1929:

Cleveland-Detroit
Los Angeles-Seattle (to complete)
Chicago-Twin Cities (to complete)
Miami-Atlanta
Dallas-Galveston
Cleveland-Albany
Dallas-Laredo
New Orleans-Atlanta
Boston-Albany
New York-Albany
Atlanta-St. Louis via Birmingham and Memphis
St. Paul_Winnipeg (to United States border)
Albany-Montreal (to United States border)
Jacksonville-Savannah-Charleston-Norfolk (seaplane airway)
Pittsburgh-Cleveland
Key West-Miami
Chicago-Indianapolis-Cincinnati
Birmingham-Louisville via Nashville
Tampa-Titusville

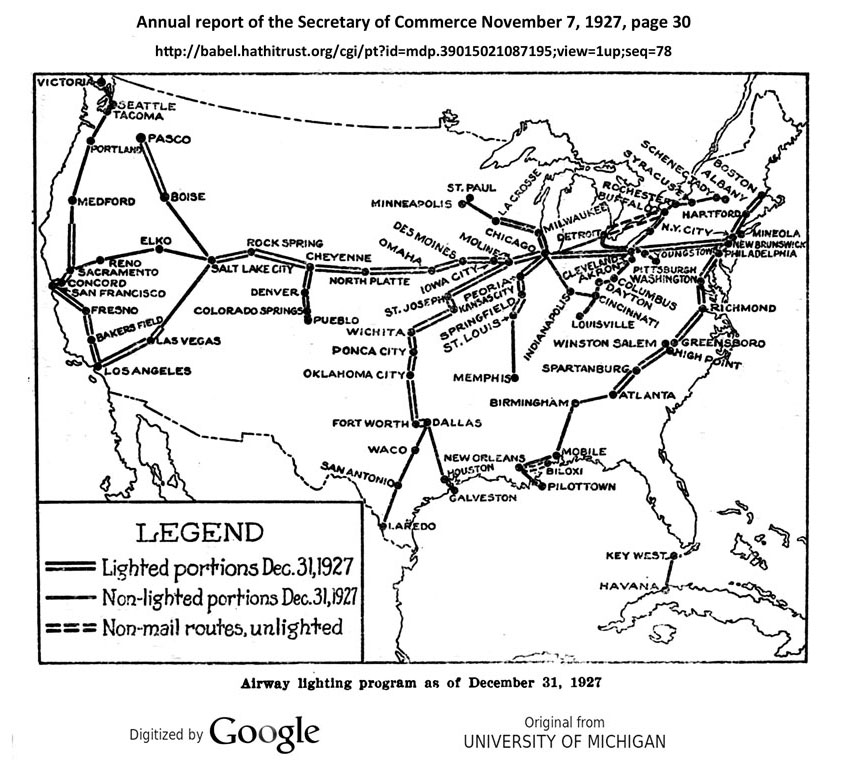

Annual report of the Secretary of Commerce November 7, 1927, page 30



AIR COMMERCE BULLETIN Vol. 2, No. 8, October 15, 1930 pages 199-201

ENGINEERING IN THE DEVELOPMENT OF AIRWAYS

At the present time there are 324 Department of Commerce intermediate landing fields in operation throughout the United States, which, in the aggregate, represent a substantial engineering task on the part of the airways division of the Aeronautics Branch. Eighty of these fields were completed during the past fiscal year, the completion of which required approximately 156 contracts for grading, seeding, removal of obstructions, installation of drainage systems, construction of fences, and similar work.
When the airways division first was established, the practice of the Post Office Department airmail service was followed for the reason that this was the only organization in the world which had laid out intermediate landing fields and airways. Under the air commerce act of 1926, the Post Office airways were turned over to the Department of Commerce for future maintenance.
The first airways were established in open country where natural landing fields could be found. The first intermediate landing fields were, in effect, any 40-acre tracts of ground which could be utilized in their natural state, and which could be selected on the line of the airway at proper intervals. It was intended that by the installation of lighting equipment at these sites, they could be used to furnish suitable emergency landing areas, without further conditioning work other than removal of fences separating adjacent tracts of land and other work of inconsequential nature. The original estimates for work of this type allowed approximately $500 per field.
It did not take very long to outgrow this practice, as it soon became apparent that the airways division could not hope always to find such natural landing fields. This became more certain as the need for larger fields became more pronounced. When the work was extended into mountainous country it was found impossible, in many cases, to secure natural sites of sufficient size for the aircraft being flown over the route. This led to the undertaking of certain conditioning and grading work by the airways extension superintendents assigned to the various airways.

ENGINEERS EMPLOYED

As operations were expanded, it became evident that the services of men especially trained for work of this nature were needed. Accordingly, a number of engineers were employed, these engineers being assigned to certain sections of an airway to superintend grading and conditioning of fields, the removal of obstructions, and work of like nature. This relieved the burden of conditioning work from the extension superintendents, who were essentially pilots with some degree of surveying knowledge, and enabled the airways division to make further use of their aeronautical experience in preliminary survey work.
It was also intended to assign engineering personnel to assist the extension superintendents in the selection of fields, with a view to obtaining sites with better natural drainage and lower conditioning costs. This could not be done at first as there were a great many fields waiting to be conditioned, and it took quite a while for the construction of fields to catch up with the preliminary surveys.
Under the general procedure in work of this nature at the present time, an airways extension superintendent, with an airways division plane, is assigned to make a preliminary survey of a certain route. The extension superintendent flies this section of airway, notes the general type of terrain and natural features of the ground, the existence of power lines, roads, and other features which will assist him in determining the selection of sites.
The ground survey is then made and field sites tentatively selected. The extension superintendent informs the engineer of the sites which he has in mind, and may call on him to make surveys to determine their adequacy with relation to costs, which would involve an estimate of the amount of earthwork involved, and a study of the drainage situation.
Equipped with this information, the extension superintendent proceeds to negotiate with the property owners, and when suitable agreement is reached, forwards this information to the office of the airways division. If the tentative selection of sites is approved, the extension superintendent negotiates licenses for these sites, calling on the engineer to furnish him suitable legal descriptions of the fields. The engineer runs suitable traverse for this legal description, stakes being set, which he will later use in connection with the conditioning of the field. If time is available, the engineer will make complete a topographic survey of the field, and obtain other data necessary for the preparation of proposals and specifications under which the conditioning work is to be performed.
All throughout the progress of the preliminary survey the engineer, in addition to assisting the extension superintendent, is able to gather such information as will assist him when conditioning work is started. The assistance of the engineer also enables the extension superintendent to complete the preliminary survey in less time than would otherwise be the case, as the airways extension superintendent is furnished a traverse of the field site in question, from which he may prepare the legal description. The airways extension superintendent may also call on the engineer to furnish him comparative costs of conditioning alternate sites which may be under consideration, and other information which may aid him in dealing with property owners.

PROPOSALS AND SPECIFICATIONS

After all sites on an airway have been approved by the executive board of the Aeronautics Branch, Department of Commerce, and field licenses accepted, the engineer proceeds immediately to issue proposals and specifications for such work as is necessary to place the fields on his section in proper shape for use as intermediate landing fields. These proposals and specifications are forwarded to the office of the airways division, together with drawings, topographic maps, and such auxiliary information as may aid the office in determining the amount and nature of work to be performed at each site. The proposals and specifications are revised accordingly and returned to the field engineer for advertising. The work is then advertised, bids are opened, and forwarded to the office of the airways division for award.
After such award is made, the engineer notifies the successful bidder to proceed. This work is carried on under the direct supervision of the engineer assigned to that section of airway. There may be five or six fields under construction at one time, in some instances more, and the engineer drives back and forth between the sites and instructs various contractors relative to the prosecution of the work.
The fields are graded, not only to limited sharp grades, abrupt changes in slope, and reversals in side slope at the runways, but also to secure surface drainage. Tile is installed under the fields where necessary, suitable drainage ditches dug around the fields and revetments placed to hold the fills. In some cases, small streams are diverted and their waters carried by suitable pipe lines to new outlets. Once it was necessary to pipe water from a drainage area of 600 acres under a field in order to provide a satisfactory runway. In other instances, levees are thrown up to prevent the inundation of the fields due to flood waters at certain periods in the year. Trees are removed and their stumps grubbed out of the field, and trees and other obstructions removed on adjoining property, if these obstructions are within a seven to one gliding angle.
Arrangements are made with telephone and power companies for the removal or lowering of their lines. After completion of the grading and smoothing work on fields, steps are taken to prevent the formation of washes. In most instances, this means a good sod must be obtained after grading operations are completed. The soil and climatic conditions are studied with a view to obtaining a sod in the shortest possible time. In addition to this sod, revetments must be placed at times to hold the fills in place, and in other cases, brush dams are added to aid the accretions of soil to fill in low spots and to break up the tendency of washes to form at certain places.
After the contract for installation of lighting equipment has been awarded, the engineers assist the representatives of the construction section in certain phases of their work. In cases where it is not convenient to include the field circle markers and border markers in the contract for lighting installation, separate contracts are let by the engineers for this work.

MISCELLANEOUS WORK

In addition, many other miscellaneous jobs are performed by the engineers, mainly in connection with the furnishing of information to the office. An example of this type of work is the determination of the visibility of revolving beacon lights and the removal of trees from intervening ridges to secure this proper visibility.
As this work of conditioning fields extends over the entire United States, every conceivable condition of climate and soil is met. Nearly all intermediate fields are limited by the tracts of ground which can be obtained at a fair rental. In the selection of intermediate fields, soil characteristics are of primary importance. The proper selection of sites with this in mind results in lower conditioning cost. A certain amount of porous material, combined with a natural binder, is to be desired. An impervious subsoil located close to the surface is to be avoided, gravelly subsoil being most suitable. If the site is selected with these points in mind, artificial drain- age may not be necessary. Ditches, filled with gravel, afford a means of disposing of surface water when placed judiciously and act as a preventive measure to the formation of washes. In a great many instances tile must be installed. The trench in which these tile lines are placed are frequently back filled with gravel. In some cases, gravel is placed around the pipe and sumps filled with gravel extended to the surface. About every possible combination of catch basins and pipe is used. If the volume of water to be carried off is considerable, perforated iron pipe may be used.

INSTALLATION OF LIGHTING

The assignment of engineers to preliminary surveys, in addition to speeding up the conditioning the fields, has materially expedited the installation of lighting equipment by decreasing delays occasioned by the arrival of the equipment contractor at a field site before the boundaries of the field are in proper shape for cable to be laid. In most instances, field conditioning is well in progress by the time the lighting installation contract is awarded. In addition to the 324 intermediate fields now in operation there are 46 in various stages of construction. Approximately 90 fields will be completed this fiscal year. The construction of these fields will involve moving approximately 300,000 cubic yards of earth, the laying of 11 miles of various sizes of pipe and tile, the construction of 120 miles of fences, 30 miles of ditches, 1,800 sets of field border markers, and the clearing of approximately 500 acres of timber at a total cost of $200,000 to the Government, and $80,000 to cooperating municipalities.
